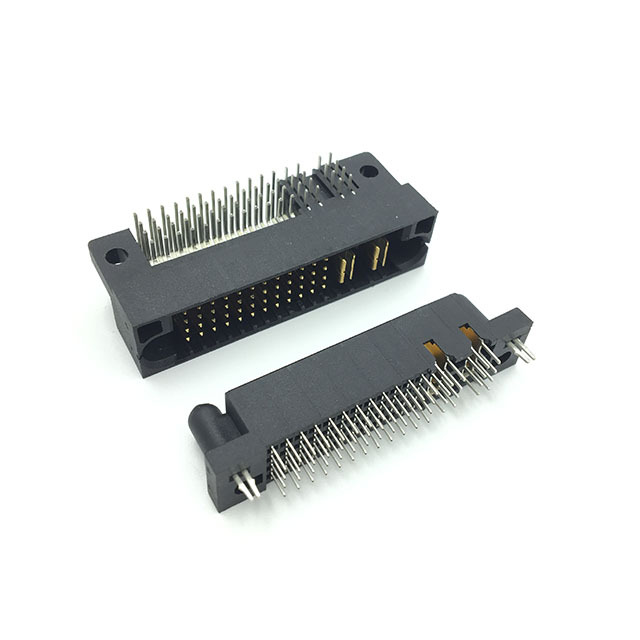

MISTA 40A 48S+2P Blade power connector
MISTA 40A 48S+2P Blade power connector
MISTA 40A 48S+2P Blade power connector
- Detail
- Parameters
Housing Material：
PPA, glass fiber reinforce, UL94V-0, Black
Contact Surface Material:
Power contact：High conductivity copper alloy，partial or all gold plating,Signal contact：Phosphor bronze，partial or all gold plating,PCB lock: Phosphor bronze, tin plating.
Current Rating(A):
40A(per pin)
Operating Temperature :
-55℃ to +125℃
Insulation Resistance:
Signal contact: 500MΩ min.Power contact: 10000MΩ min.
Family:
Male and Female
Brand Name:
MISTA
Pitch(mm):
5.08mm,6.35mm,7.62mm
Screw (Yes/No):
Yes
Pin and Socket Material:
Brass or copper
PCB Mounting:
T/H
Rated current:
Signal contact: 2.5A,Power contact: 50A
Rated voltage:
Power contact: 60V （5.08mm centerline distance）,200V（6.35mm centerline distance）,300V（7.62mm centerline distance）,Signal contact: 60V
