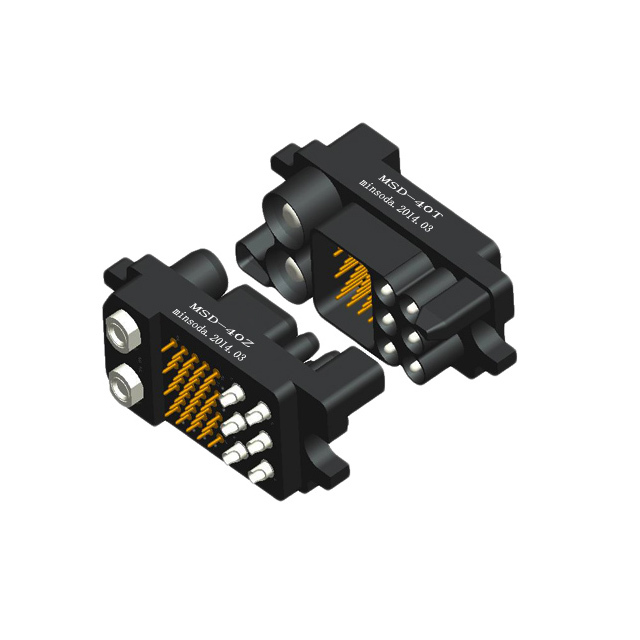

MISTA 40PIN DL40 Tyco and ELCON 125A Middle Drawer Connector
MISTA 40PIN DL40 Tyco and ELCON 125A Middle Drawer Connector
MISTA 40PIN DL40 Tyco and ELCON 125A Middle Drawer Connector
- Detail
- Parameters
Housing Material：
PET, 30% fiber glass（G30）, UL94V-0, black
Contact Surface Material:
Brass or copper
Voltage Rating:
600V
Current Rating(A):
125A(per pin)
Operating Temperature :
-55℃ to +125℃
Contact Resistance:
≦0.66mΩ
Insulation Resistance:
≥1000MΩ
Withstand Voltage
1500V
Family:
Male and Female
Brand Name:
MISTA
Screw (Yes/No):
Yes
Crown Spring Material:
Beryllium bronze
Terminal Style:
Crimping (Y), Solder Cup(H), Internal Thread (N)
Pin and Socket Material:
Brass or copper
Mechanical Life:
1,000 times
