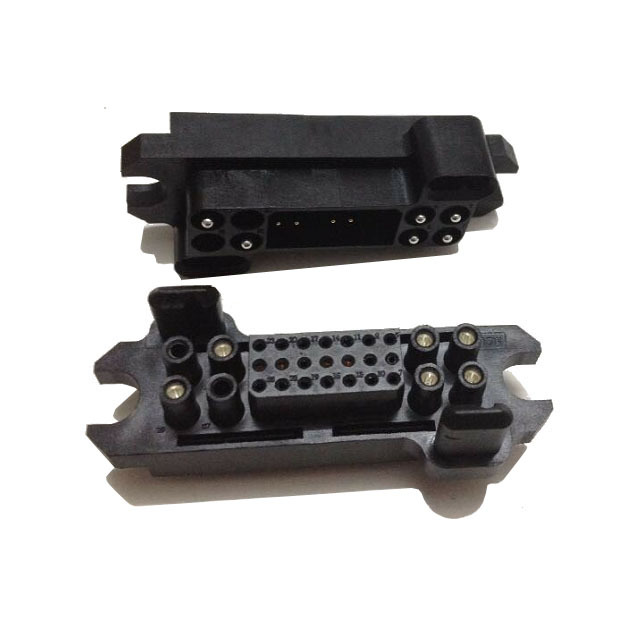

29PIN Rectangular Power Connector,JONHON,ELCON Tyco Equivalent Connectors

  • Detail
  • Parameters
Housing Material：
PET, 30% fiber glass（G30）, UL94V-0, black
Contact Surface Material:
Brass or copper
Voltage Rating:
600V
Current Rating(A):
35A(per pin)
Operating Temperature :
-55℃ to +125℃
Contact Resistance:
≦1.0mΩ
Insulation Resistance:
≥1000MΩ
Withstand Voltage
1500V
Family:
Male and Female
Brand Name:
MISTA
Screw (Yes/No):
Yes
Crown Spring Material:
Beryllium bronze
Terminal Style:
Crimping (Y), PCB Tail (B), Solder Cup(H)
Pin and Socket Material:
Brass or copper
Mechanical Life:
1,000 times
PCB Mounting:
T/H
