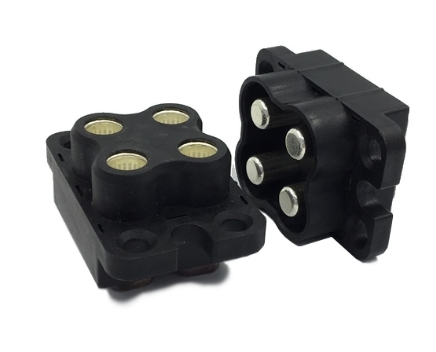

MISTA 4pin 150A(ELCON:1648574-1) Drawer Series Connectors
MISTA 4pin 150A(ELCON:1648574-1) Drawer Series Connectors
MISTA 4pin 150A(ELCON:1648574-1) Drawer Series Connectors
- Detail
- Parameters
Housing Material：
PET, 30% fiber glass（G30）, UL94V-0, black
Contact Surface Material:
Brass or copper
Current Rating(A):
150A(per pin)
Operating Temperature :
-55℃ to +125℃
Contact Resistance:
≦0.32mΩ
Insulation Resistance:
≥1000MΩ
Withstand Voltage
1500V
Family:
Male and Female
Brand Name:
MISTA
Screw (Yes/No):
Yes
Crown Spring Material:
Beryllium bronze
Terminal Style:
Crimping(Y), Internal Thread(N), External Thread(W)
Pin and Socket Material:
Brass or copper
Circuits:
4
Mechanical Life:
1,000 times
