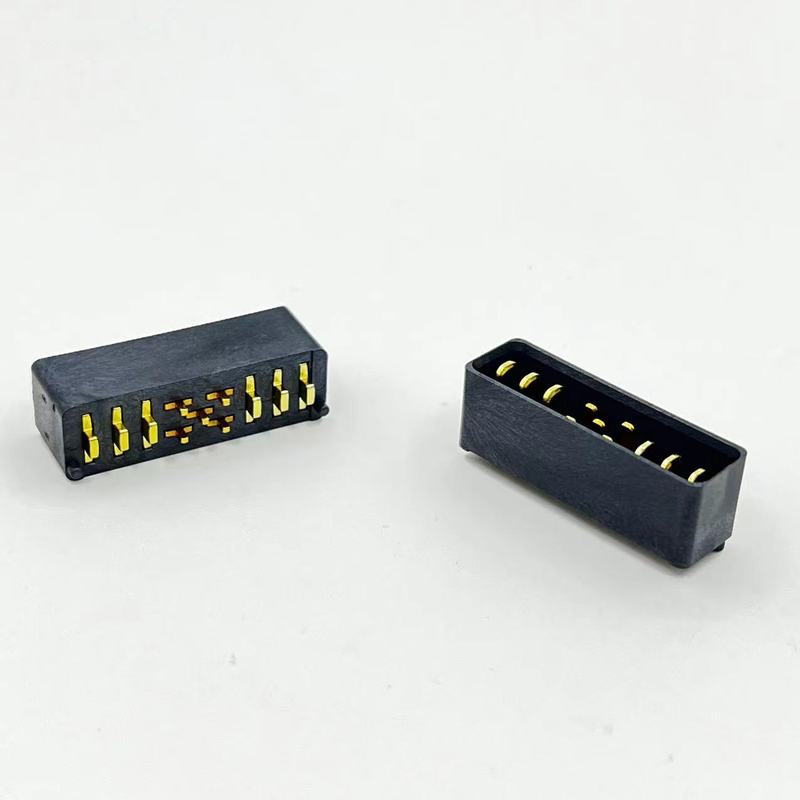

11pin pitch2.7mm M30 Drone connector Male
11pin pitch2.7mm M30 Drone connector Male
11pin pitch2.7mm M30 Drone connector Male
- Detail
- Parameters
Housing Material：
LCP(UL94V-0)
Contact Surface Material:
C2680
Voltage Rating:
500V
Instant Current:
Power:15A/Per Pin
Current Rating(A):
15A(per pin)
Operating Temperature :
-40℃ to +105℃
Contact Resistance:
≦2mΩ
Insulation Resistance:
1000 MΩ min./500V DC
Withstand Voltage
500 V AC Min.
Insertion force:
6N-20N
Withdrawal force:
6N-15N
Durability life:
5000 cycles min
Family:
Male and Female
Brand Name:
MISTA
Pitch(mm):
2.7mm
Screw (Yes/No):
No
Circuits:
11
PCB Mounting:
T/H
