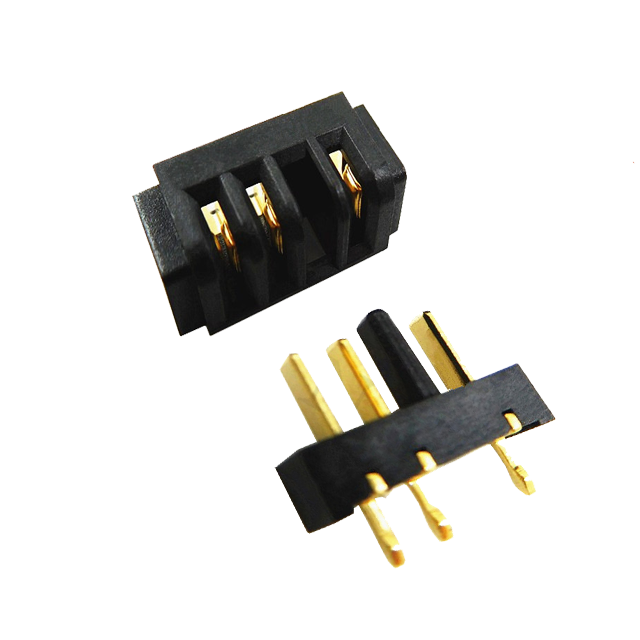

2-12pin(2+X) pitch2.5mm Battery connector
2-12pin(2+X) pitch2.5mm Battery connector
2-12pin(2+X) pitch2.5mm Battery connector
- Detail
- Parameters
Housing Material：
Nylon 9T(UL94V-0)
Contact Surface Material:
Copper
Voltage Rating:
30V
Current Rating(A):
7A (per pin)
Operating Temperature :
-40℃ to +105℃
Contact Resistance:
30mΩ
Insulation Resistance:
100 MΩ
Withstand Voltage
500 V AC Min.
Family:
Male and Female
Brand Name:
MISTA
Pitch(mm):
2.5mm
Screw (Yes/No):
No
Circuits:
3-12
Operation Direction:
S/T
PCB Mounting:
T/H
